What is Dieline in Packaging?

Last updated: 1 month ago
Table of Contents

In the packaging industry, the term dieline refers to a template that ensures the accurate layout of your packaging. It serves as a diagram of your packaging that marks all the folds and cut lines.

Graphic designers create the dieline templates used in packaging production, such as envelopes, boxes, mylars, and more.

To get a better understanding, read the complete blog below!

Mailer Box Dieline

Types Of Lines in The Dieline

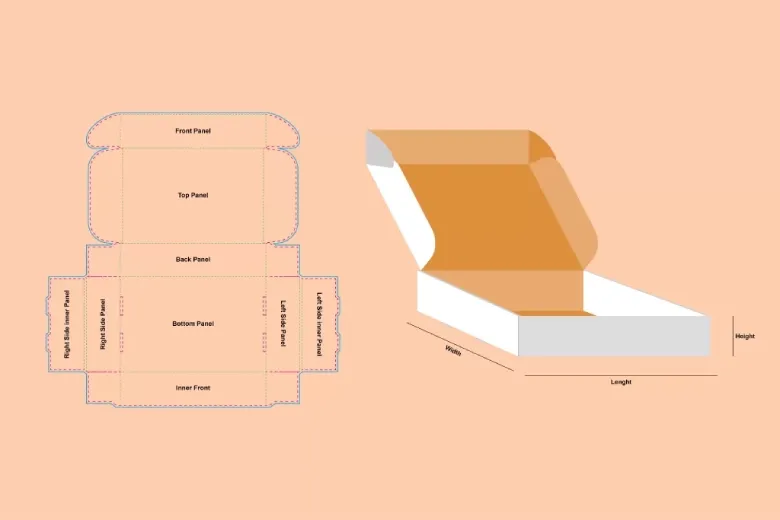

The dielines consist of three different lines, such as:

  1. The perforation line
  2. The cut line
  3. The fold line

When your packaging design is sent for printing, dielines serve as essential guides for cutting, perforating, and folding the material accurately. These lines appear in separate layers and colors, ensuring the machine distinguishes between cutting and perforation. The cut line defines the trim, while the perforation line allows easy folding or tearing. Additionally, fold lines guide structured assembly. Safety and bleed lines prevent misalignment, ensuring a flawless die-cutting process for a perfectly crafted package.

Why Does Dieline Matters?

Dielines play an important role in the packaging manufacturing process. They provide the main template for the artwork you want to print on your packaging. They serve as the blueprint of your packaging that ensures all physical elements are placed accurately for the final printed product. They include:

  • Place of the visual elements, such as logos, text, artwork, and images.
  • Placement of creases, cutlines, eye marks, folds, and more.
  • Sizing, scale, and dimensions.
  • Bleed Requirements.

Once all these elements are in place, the dieline provides designers with a final preview of how the product packaging will look once printed.

Nevertheless, dielines are not just limited to creating an outline custom box. They also get used to creating various products, including brochures, beverage packaging, bags, and more.

You can also check our expert guide on artwork preparation for placing your artwork accurately!

Know More About the Die-Cutting Process

Dielines play a great role in creating the unique packaging you want for your products. Thus, it’s also essential to know more about the die-cutting process.

Here’s the process!

Die-cutting machines cut out your packaging using a die. Dies are thin metal shapes with a raised outline on one side, which cuts through your packaging material.

A die is basically a specific tool to cut or shape material which is mostly using a press.

Before using a die-machine, you must first create a set of dies according to the desired shapes of your unassembled dielines.

After creating a dieline for your package, a die-cutting machine will put pressure on a die using rollers and cutting plates. Then, the machine will push through the material to create a precise shape and size for your packaging.

In other words, dielines create a precise guideline for the die cutting machine to create and manufacture your packaging design through the die-cutting process.

How to Customize a Dieline?

Customizing a dieline is an excellent way to create distinctive packaging for your product. You can use graphic software programs like Adobe Illustrator to make this process straightforward. With its user-friendly tools and templates, Adobe Illustrator can simplify the design process.

To maintain straight edges and guidelines, you can follow the steps below:

  • Create a new layer by clicking on the layer option.
  • A dialogue box will appear that allows you to specify the desired width for your guidelines (e.g., “1mm”). You need to press Enter.
  • The next steps closely resemble those you’d follow in CorelDraw or similar software.

Moreover, when designing a dieline template, there are some requirements you must consider:

  • A dieline must be developed as vector art on computers as computers require mathematically described lines.
  • Focus on the packaging specifications you have while building a dieline.
  • Consider creating a hard copy prototype of the dieline for catching errors before the final production.

Need Design Assistance for Your Dieline Packaging?

Are you looking to get a dieline template for your custom packaging and boxes? We can help you create your desired packaging dieline template. With our skilled design team at Custom Box Makers, you can have a unique dieline for your packaging to set your product apart from the rest.

Feel free to contact us for your customized dieline design needs today. We’re always happy to help!

FAQs

Q1. How is a dieline different from a mockup?

A dieline serves as a 2D representation of packaging design, while a mockup conveys it in a 3D format.

Q2. What factors should be taken into account when designing a dieline?

When you’re designing a dieline, it is essential to keep in mind the shape, size, and material of the packaging you’re working with.

Q3. How can I ensure that my dieline is feasible before proceeding with manufacturing?

You can create a prototype using the dieline before moving forward with production. In this way, you can make any necessary adjustments to the dieline and rest assured that your final product will be perfect.

Q4. How can I ensure that my dieline is properly prepared for printing?

If you want to make sure that your dieline is ready for printing, keep in mind the image resolution, as well as the color mode and file format.
